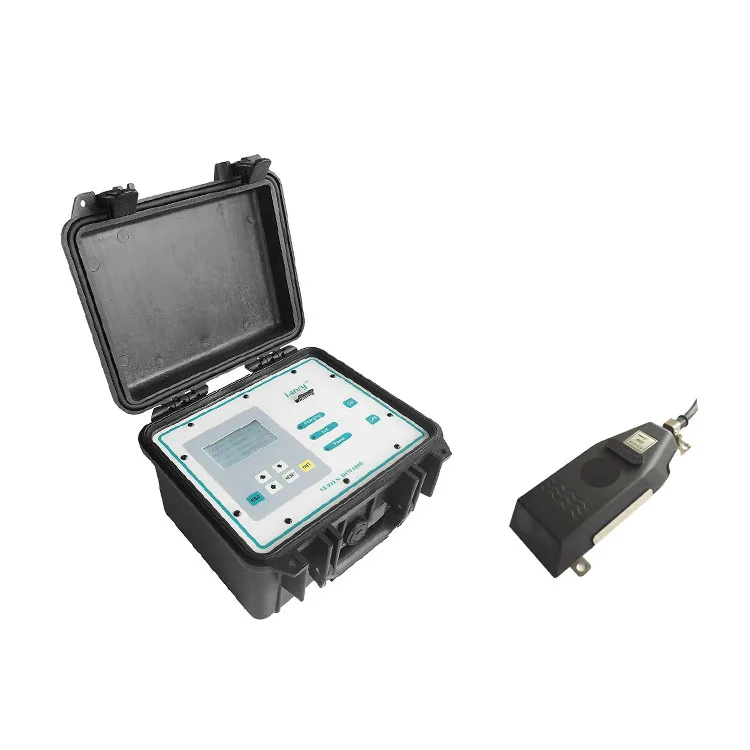

The flow calculator can calculate the cross-sectional area of partially fifilled pipe, open channel stream or river, for stream or river, with up to 20 coordinate points describing the river's shape of cross section. It is suitable for various applications. Ultraflow 6537 Velocity and Level Transducer is a unique combination of water velocity, depth, pressure, conductivity and temperature instruments integrated with a solid state logger. It is a new generation of intelligent flow measurement systems. 1. 20 coordinate points to describe the river’s shape of cross section. 2. One instrument can measure the velocity, depth and conductivity at same time. 3. Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%. 4. Depth Range: 0 to 10m 5. Measure velocity in both forward flow and back flow. 6. Depth is measured by both the pressure sensor and ultrasonic level sensor principles. 7. With coordinate correction and pressure compensation function. 8. IP68 Epoxy-sealed body design, long time under water. 9. RS485/MODBUS output, can contact computer directly. Sensor: | Velocity | Velocity range | 20mm/sec to 12m/sec | | Velocity accuracy | +/-1% typical | | Velocity resolution | 1mm/s | | Depth(Ultrasonic) | Range | 20mm to 5000mm | | Accuracy | +/-1% | | Resolution | 1mm | | Depth(Pressure) | Range | 0mm to 10000mm | | Accuracy | +/-1% | | Resolution | 0.1℃ | | Electrical Conductivity | Range | 0 to 200,000uS/cm,Typically +/-1% of measurement | | Resolution | +/-uS/cm | | Tilt(accelerometer) | Range | +/-70°in roll and pitch axes | | Accuracy | +/-1° for angles less than 45° | | SDI-12 | SDI-12, V1.3, Max.cable 50m | | Output | Modbus | Modbus RTU, Max.cable 500m | | Environmental | Operating temperature | 0℃ ~60℃ water temperature | | Storage temperature | -20℃~+60℃ | | | IP class | IP68 | | | Cable | The standard cable is 15m, the maximum option is 500m | Calculator: | Type | Portable | | Power supply | 85~265VAC | | IP class | Calculator: IP66 | | Operating temperature | 0~60℃ | | Case material | ABS | | Display | 4.5'' color LCD | | Output | Pulse, 4-20mA(Velocity & Depth), RS485/Modbus, Datalogger, GPRS | | Size | 270L*215W*175H(mm) | | Weight | 3kgs | | Data storage | 16GB | | Application | Partially Filled Pipe:150-6000mm; Channel: Width>200mm | Installation of Doppler Open Channel Flow Meter
Certifications
Delivery by Express Smart oil level gauge Standard meter: 3-7 days Special meter: pls contact us Express, by air, by sea canbe optional.
|
